The Portable Sonar Solution for Every First Responder
SARVISION-GO is a compact, field-proven sonar system designed specifically for search and rescue operations. Built for police, fire brigades, water rescue teams, and emergency services, it enables rapid underwater search with minimal setup time and maximum operational clarity.
The system combines intuitive operation, high-contrast visualization, and optional AI-assisted detection to support responders in time-critical missions.
Designed for Real SAR Operations
SARVISION-GO is engineered with one goal: fast, reliable results in demanding environments.
From deployment to the first scan takes less than 30 seconds. The rugged, battery-powered design ensures a full operational shift without dependency on external power. The interface is optimized for use with gloves and under stress conditions, making it ideal for real-world rescue scenarios.
Core Capabilities

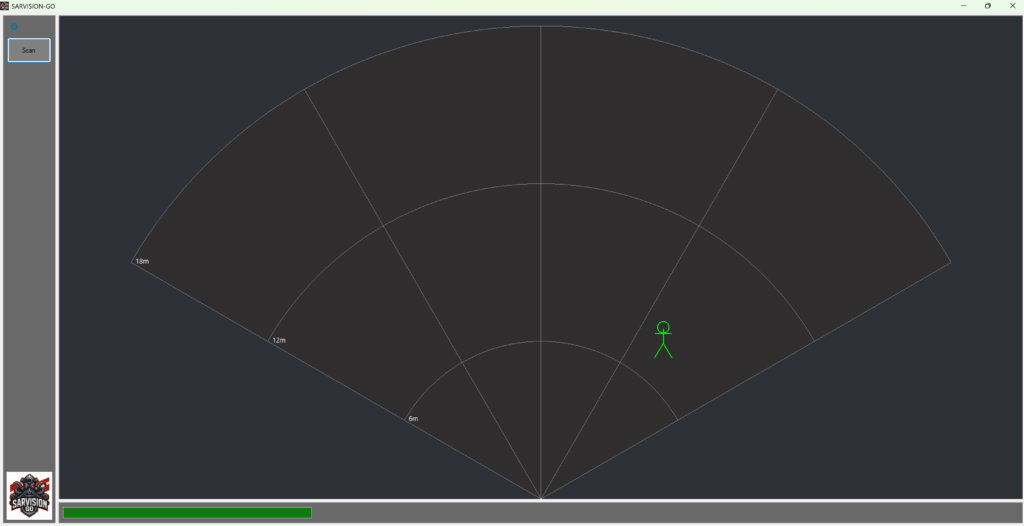

- AI-assisted detection of persons and objects underwater
- Instant deployment – operational in under 30 seconds
- High-contrast display, readable even in direct sunlight
- Integrated data capture (screenshots + metadata) for reporting
- Battery powered, with interchangeable battery system for continuous use
Two Configurations: Lite and Pro
SARVISION-GO is available in two variants, allowing organizations to choose between a streamlined solution and a fully equipped professional system.
SARVISION-GO Lite
- 8″ rugged tablet
- 120° sector scan
- Single frequency sonar
- Range: 10 / 20 / 40 meters
- Basic AI for person detection
- Up to 10 stored scans
- Simple, fast, and highly effective entry solution
SARVISION-GO Pro
- 8″ or optional 10″ tablet
- Adjustable scan angles: 60° / 120° / 180°
- Triple frequency sonar
- Range: 3 to 60 meters
- Advanced imaging and visualization
- Continuous scanning mode
- Storage for over 1000 scans
- Export functionality for analysis and reporting
- Full AI capability including custom models
- WiFi, GPS, and optional 4G/5G connectivity
- Remote service support
Sonar Performance Overview
| Feature | Lite | Pro (Europe) |
|---|---|---|
| Scan Angles | 120° | 60° / 120° / 180° |
| Frequency | Single | Triple |
| Range | 10–50 m | 3–50 m |
| Max Area per Scan | 1,675 m² | 5,652 m² |
| Scan Time (max angle) | ~14 s | ~30 s |
| Continuous Scan | No | Yes |
| Imaging | No | Yes |
| Data Storage | ~100 scans | >1000 scans |
| Data Export | No | Yes |
Advanced System Features (Pro)
- Multi-sonar integration (3D) for enhanced situational awareness
- Shared scan data across multiple units
- Live scan visualization on map (GPS-based)
- Symbol and image overlay for clearer interpretation
- Custom AI models tailored to specific mission profiles
Technical Specifications (Excerpt)
- Display: 8″ or 10″ sunlight-readable rugged tablet
- Scan Modes: Sector scan (60° / 120° / 180° depending on configuration)
- Power Supply: 14.4V / 18V interchangeable battery system
- Protection: Splash-resistant, near-IP rated construction
- Interfaces: USB-C, RJ45, WiFi (depending on configuration)
Included in Delivery
- SARVISION-GO base unit
- Battery and charger (depending on configuration)
- Quick start guide (DE)
- Carrying and mounting options
Why SARVISION-GO
Unlike traditional sonar systems that require extensive training and complex interpretation, SARVISION-GO is built for operational efficiency:
- Minimal training required
- Clear visual feedback
- Fast decision support
- Designed specifically for SAR—not adapted from fishing or survey equipment
AI Disclaimer
AI-based detection is intended as a decision-support tool only. Final interpretation and operational decisions remain the responsibility of the operator.
